Glass Framed Trend Plus Door Seal

Glass Framed Trend Plus Door Seal
DROP SEALS RETROFIT UNINSTALLED r2

Description

Drop seal specifically designed for framed sliding glass doors, with a soft mechanism requiring less than 12 Newton to be activated. The plunger can completely fit in the profile to eliminate any gap between the door and the frame/wall, with acoustic value at the top.

  • Custom length available upon request.
  • Trimming: 4.92" (125mm) max.
  • Two options for fixing: self-adhesive or screws.
  • Available for two door types: swing or sliding.
  • Fixing type: 6F
  • Handing: Interchangeable by flipping position.

Specification

Part Number

CE1320TDP

Application

Glass

Hand

Left or right

Plunger Type

17A

Size / Length

38.5" (978MM), 42.5" (1079MM)

Seal Type

H

dB Rating

50

Finishes

Milled

Download Assets

Request A Quote
DROP SEALS RETROFIT INSTALLED r2
DROP SEALS RETRO FIT CLOSE r2

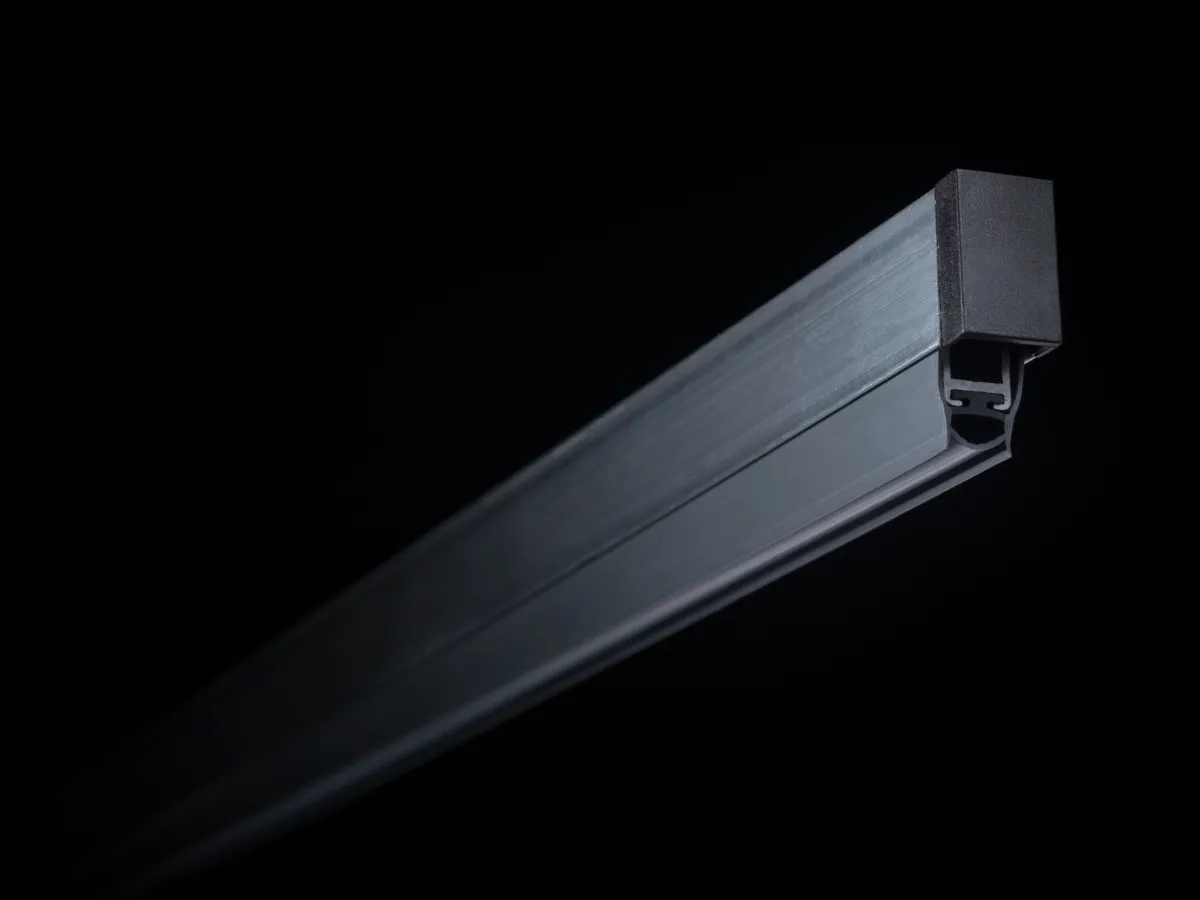

TCS DROP RETRO FIT LOW r2
